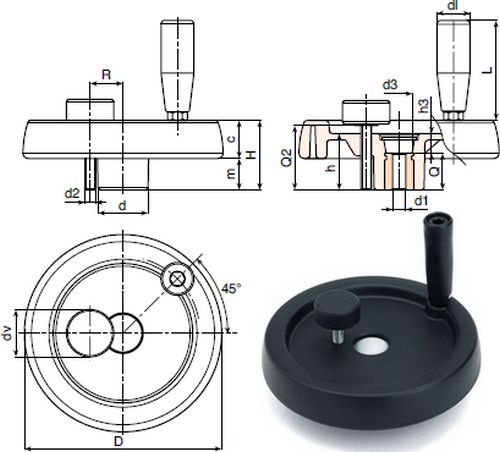

Solid control handwheel with foldaway revolving handle and locking handwheel
This product is not for sale! You can choose an alternative category plastic parts.
Material: Reinforced Polyamide
The material is resistant to oils and greases.
Surface: Satin
Handwheel and Handle colour: Black (RAL 9011)
Central cap: Grey polyamide (RAL 7035 cod.13)
Main insert: Zinc plated steel
| best.nummer | D | H | h | d | m | c | d3 | h3 | R | d2 | Q2 | d1H7 | Q | dm | dl | L | Weight (g) | Pris per st |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| C970-100 D05 | 100 | 39 | 34 | 30 | 18,5 | 20,5 | 16 | 10 | 20 | M6 | A.R. | 5 H9 | 24 | 16 | 20 | 56 | 252 | 93 SEK |
| C970-100 D10 | 100 | 39 | 34 | 30 | 18,5 | 20,5 | 16 | 10 | 20 | M6 | A.R. | 10 | 24 | 16 | 20 | 56 | 250 | 93 SEK |
| C970-125 D05 | 125 | 44 | 37 | 36 | 20 | 24 | 26 | 13 | 22-25 | M6 | A.R. | 5 H9 | 24 | 18 | 21 | 65 | 410 | 110 SEK |
| C970-125 D12 | 125 | 44 | 37 | 36 | 20 | 24 | 26 | 13 | 22-25 | M6 | A.R. | 12 | 24 | 18 | 21 | 65 | 407 | 110 SEK |
| C970-150 D05 | 150 | 54 | 44 | 38 | 25 | 29 | 26 | 12 | 25-28 | M8 | A.R. | 5 H9 | 32 | 22 | 21 | 65 | 636 | 118 SEK |
| C970-150 D14 | 150 | 54 | 44 | 38 | 25 | 29 | 26 | 12 | 25-28 | M8 | A.R. | 14 | 32 | 22 | 21 | 65 | 625 | 118 SEK |
| C970-175 D05 | 173 | 57 | 47 | 40 | 25,5 | 31,5 | 26 | 15 | 26-36 | M8 | A.R. | 5 H9 | 32 | 22 | 23 | 76 | 812 | 156 SEK |
| C970-175 D16 | 173 | 57 | 47 | 40 | 25,5 | 31,5 | 26 | 15 | 26-36 | M8 | A.R. | 16 | 32 | 22 | 23 | 76 | 802 | 156 SEK |
| C970-200 D05 | 202 | 59 | 49 | 44 | 24 | 35 | 27 | 13 | 28-42 | M8 | A.R. | 5 H9 | 36 | 28 | 25 | 86 | 1040 | 194 SEK |
| C970-200 D20 | 202 | 59 | 49 | 44 | 24 | 35 | 27 | 13 | 28-42 | M8 | A.R. | 20 | 36 | 28 | 25 | 86 | 1025 | 194 SEK |
| C970-250 D05 | 249 | 68 | 58 | 59 | 29 | 39 | 36 | 22 | 36-50 | M8 | A.R. | 5 H9 | 36 | 28 | 25 | 86 | 1590 | 305 SEK |
| C970-250 D20 | 249 | 68 | 58 | 59 | 29 | 39 | 36 | 22 | 36-50 | M8 | A.R. | 20 | 36 | 28 | 25 | 86 | 1570 | 305 SEK |
Priser exklusive moms. Om ordernummer finns angivet, vänligen uppge det tillsammans med den produkt du har valt. Vi skickar gärna vilken varumängd som helst. Om du vill beställa stora volymer, vänligen kontakta oss. Porto är från 170 kr (se pristabell).
