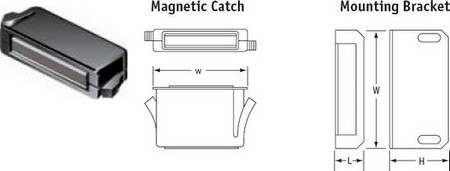

Magnetic Catches
Polypropylene
Snap-fit directly to punched panel (0,5-2,0 mm thick) or use mounting bracket if required. Available in black and white.
| best.nummer | Catch Size | Color | W (mm) | Pull Force Required (N) | Antal st per paket | pris/paket/st | Pris per st |
|---|---|---|---|---|---|---|---|
| 500006 | Central | Black | 39,7 | 46 | 20 pc | 66 SEK | 109 SEK |
| 500007 | Central | White | 39,7 | 46 | 20 pc | 66 SEK | 109 SEK |
| 500008 | Large | Black | 58,5 | 64 | 20 pc | 102 SEK | 168 SEK |
| 500009 | Large | White | 58,5 | 64 | 20 pc | 103 SEK | 168 SEK |
| best.nummer | Style | Fits Catch Size | Antal st per paket | Price for package (pc) | Pris per st |
|---|---|---|---|---|---|
| 500014 | Stick-on | Central | 20 pc | 32 SEK | 50 SEK |
| 500015 | Stick-on | Large | 20 pc | 24 SEK | 40 SEK |
| 50016 | M3 Screw-mount | Central | 20 pc | 12 SEK | 20 SEK |
| 500017 | M3 Screw-mount | Large | 20 pc | 16 SEK | 27 SEK |
*Only required for non-ferrous applications.
NB. Stick-on style attached using pressure-sensitive adhesive. Screw-mount style installed with M3 flat head screw (not supplied).
| best.nummer | dimensioner (mm) | Fits Catch Size | Antal st per paket | Price for package (pc) | Pris per st | ||
|---|---|---|---|---|---|---|---|
| L | H | W | |||||
| 50011 | 12,7 | 24,6 | 51 | Central | 20 pc | 16 SEK | 27 SEK |
| 50012 | 14,3 | 18,7 | 76 | Large | 20 pc | 23 SEK | 37 SEK |
*Only required for non-ferrous applications.
NB. Stick-on style attached using pressure-sensitive adhesive. Screw-mount style installed with M3 flat head screw (not supplied).
Prices are without VAT. If specified order number, please, it will add it to the selected type of goods. We will be glad to send you any quantity. In case of large subscriptions, please contact us.
